Products Offset grinding wheel

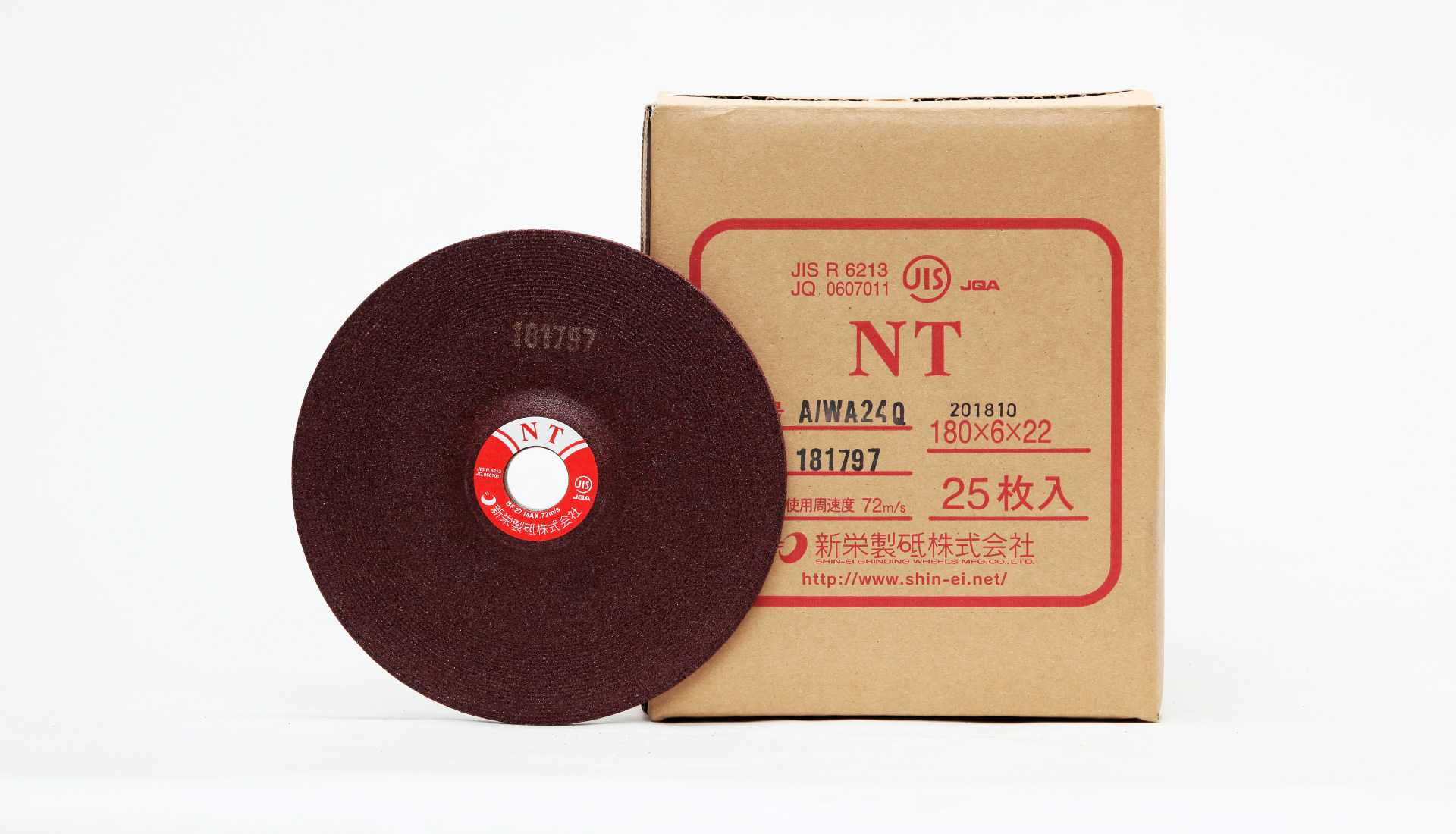

FBX・NT・ABS

FBX・NT・ABS

Application
For general steel
Features
A general purpose grinding wheel that offers excellent and lasting sharpness, together with good economy.

(Swip the screen left)

Dimensions
(Diameter×Thickness×Hole dia)		 Grain Grit Hardness Maximam
operation speed		 Pack Qty
(Inner pcs.)
100×4×15mm
100×6×15(16)mm
125×6×22mm
150×6×22mm
180×6×22mm
180×8×22mm
205×6×22mm 		A
A/WA
C
16 (coarse)
24
36
46   (fine)
O (soft)
P
Q
R
S (hard)
72m/sec 240pcs. (30pcs.)
200pcs. (25pcs.)
100pcs. (25pcs.)
100pcs. (25pcs.)
50pcs. (25pcs.)
50pcs. (10pcs.)
50pcs. (10pcs.)
180×6×22.23mm 80m/sec 50pcs. (25pcs.)

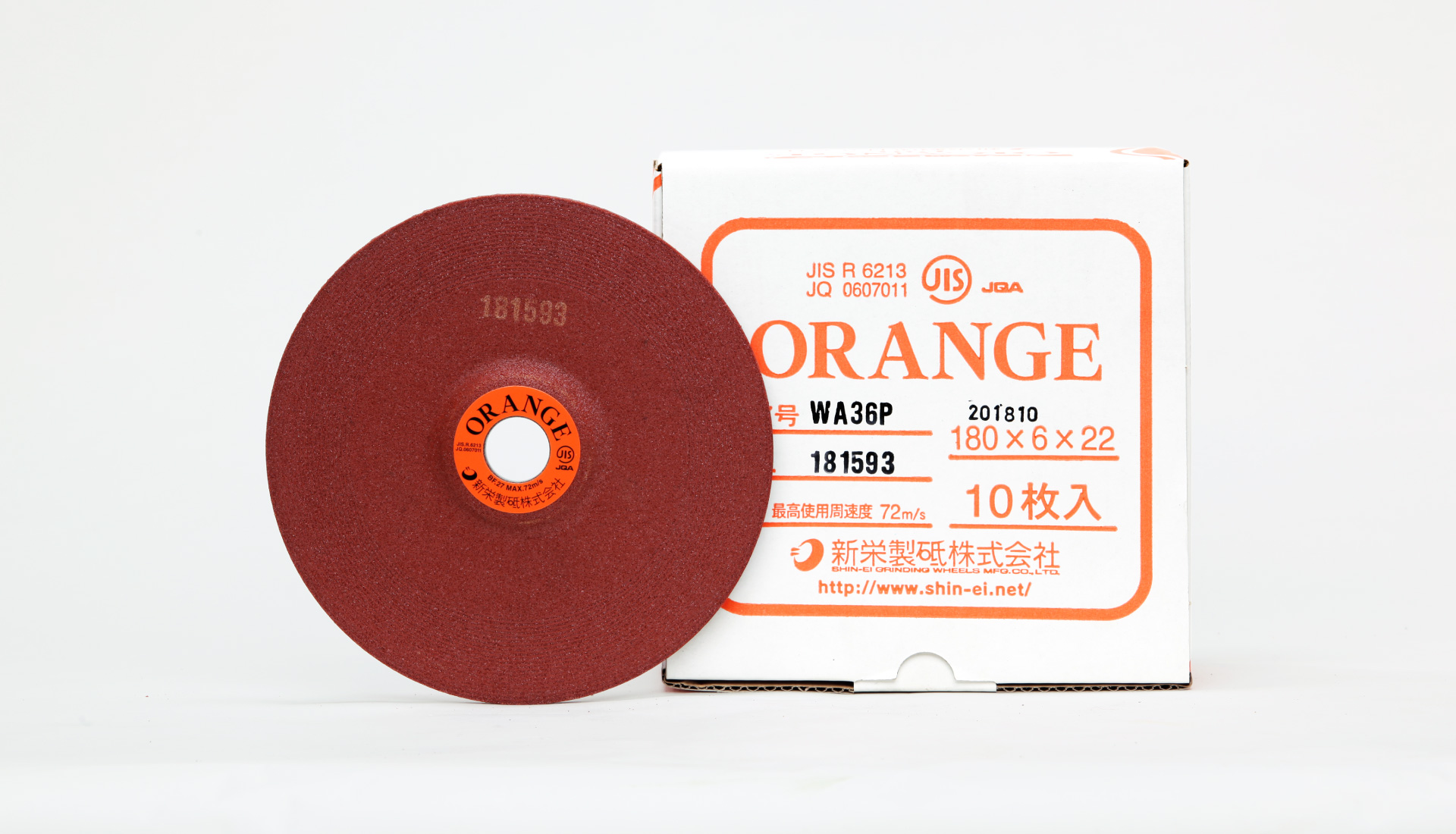

OR

OR

Application
For stainless steel
Features
Since only WA(white fused almina) materials are used, this wheel is superior in grinding stainless steel products, which are generally difficult to grind and can less rust stain.

(Swip the screen left)

Dimensions
(Diameter×Thickness×Hole dia)		 Grain Grit Hardness Maximam
operation speed		 Pack Qty
(Inner pcs.)
100×6×15(16)mm
125×6×22mm
150×6×22mm
180×6×22mm
180×8×22mm 		WA
24 (coarse)
36
46   (fine)
M (soft)
N
P
Q
R (hard)
72m/sec 200pcs. (25pcs.)
100pcs. (25pcs.)
100pcs. (25pcs.)
50pcs. (25pcs.)
50pcs. (10pcs.)
180×6×22.23mm 80m/sec 50pcs. (10pcs.)

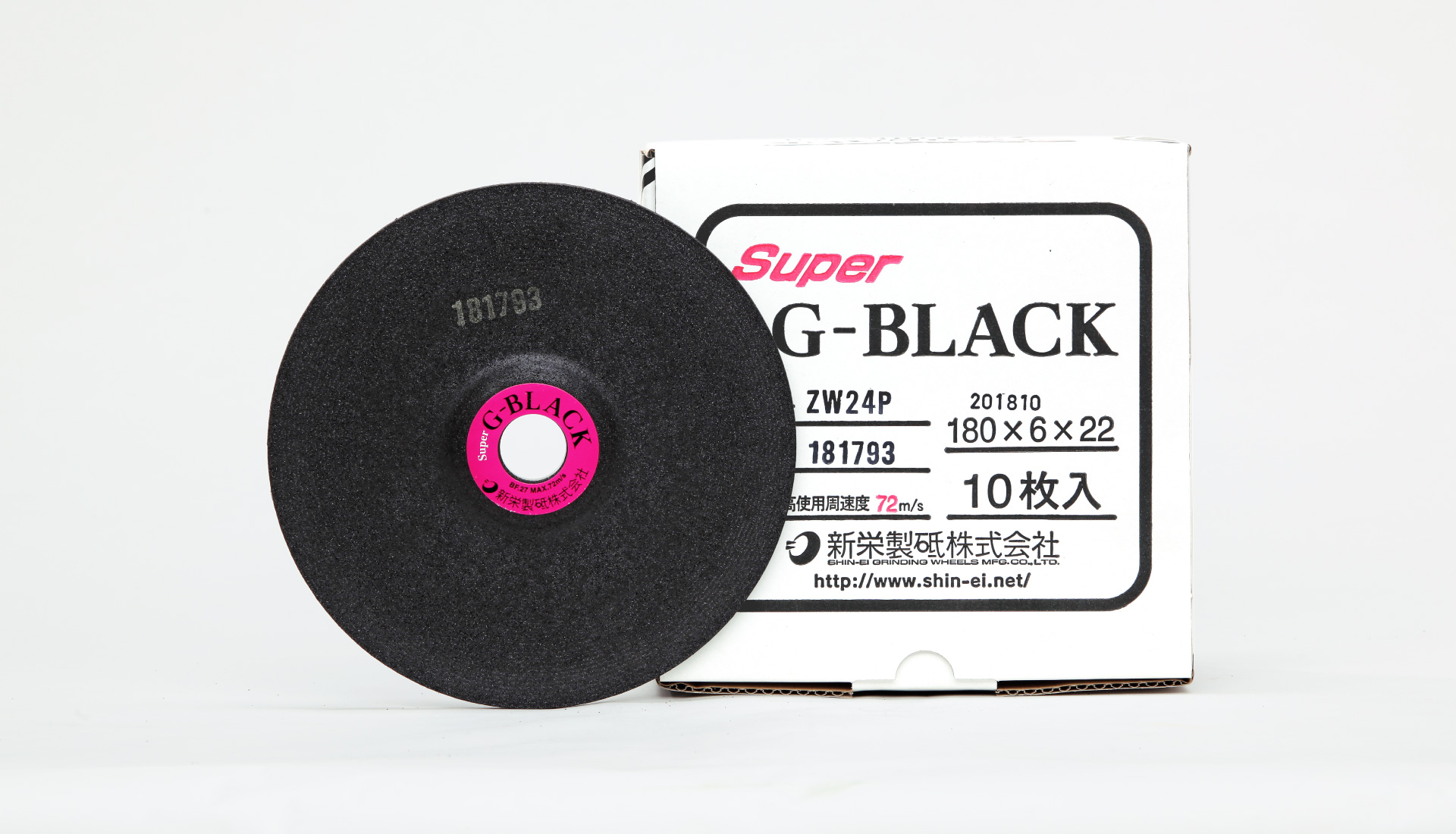

G-BLACK

G-BLACK

Application
For hevy duty grinding
Features
A high-performance offset grinding wheel manufactured by formulating AZ(alumina- ziruconia) abrasive materials so as to improve both grinding force and grinding life.

(Swip the screen left)

Dimensions
(Diameter×Thickness×Hole dia)		 Grain Grit Hardness Maximam
operation speed		 Pack Qty
(Inner pcs.)
100×4×15mm
100×6×15(16)mm
125×6×22mm
150×6×22mm
180×6×22mm
180×8×22mm 		ZW 24 (coarse)
36    (fine)
O (soft)
P
S (hard)
72m/sec 240pcs. (30pcs.)
200pcs. (25pcs.)
100pcs. (25pcs.)
100pcs. (25pcs.)
50pcs. (25pcs.)
50pcs. (10pcs.)
180×6×22.23mm 80m/sec 50pcs. (10pcs.)

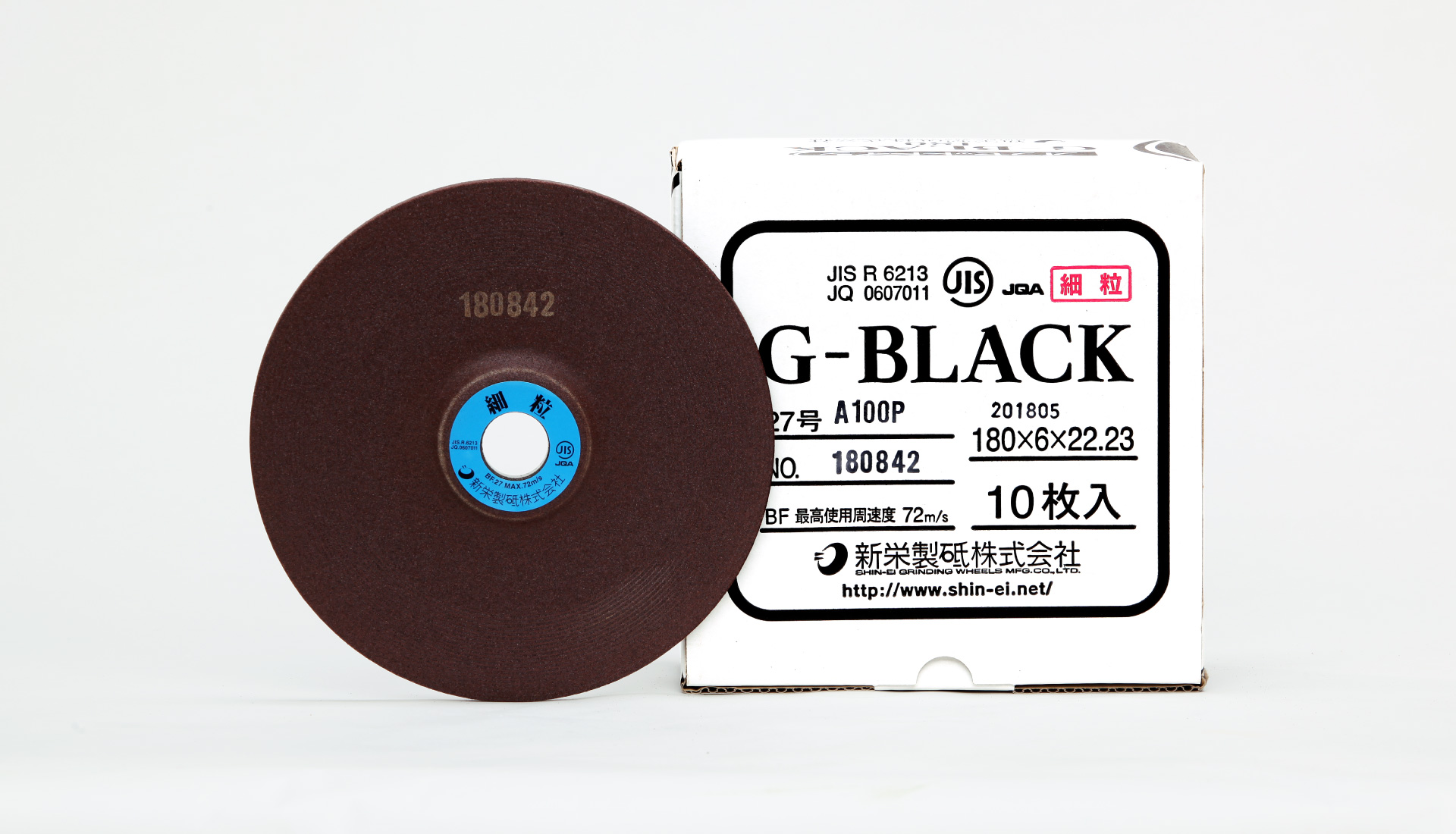

G-BLACK(For chamfering)

G-BLACK(For chamfering)

Application
For hevy duty grinding
Features
G-BLACK for chamfering shorten chamfering process by half through minimize of secondary burrs.

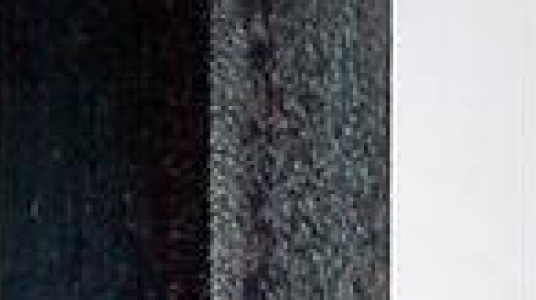

Standard process

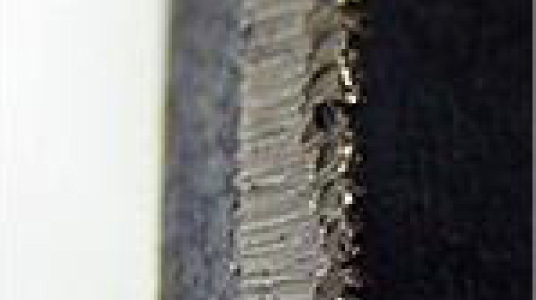

  • Before
  • Chamfering
    (Grinding Wheel #24 or #36)
  • Grind secondary burrs
    (Flexible Wheel or Paper wheel)

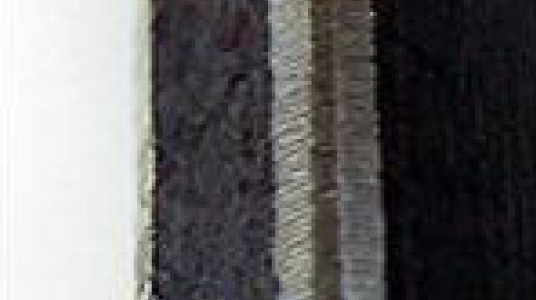

G-BLACK for chamfering

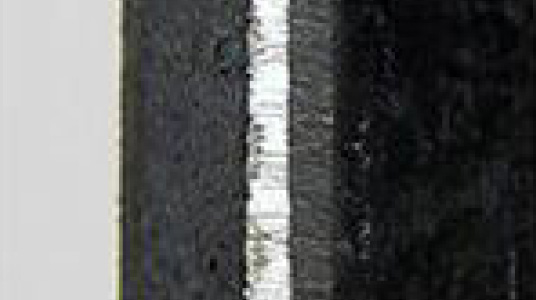

  • Before

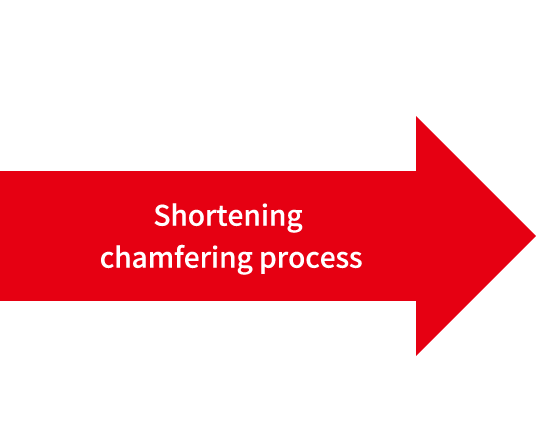

  • Shortening chamfering process
  • After

(Swip the screen left)

Dimensions
(Diameter×Thickness×Hole dia)		 Grain Grit Hardness Maximam
operation speed		 Pack Qty
(Inner pcs.)
100×6×15(16)mm
180×6×22mm 		A 80 (coarse)
100   (fine)    		 P 72m/sec 200pcs. (25pcs.)
50pcs. (10pcs.)
180×6×22.23mm 80m/sec 50pcs. (10pcs.)

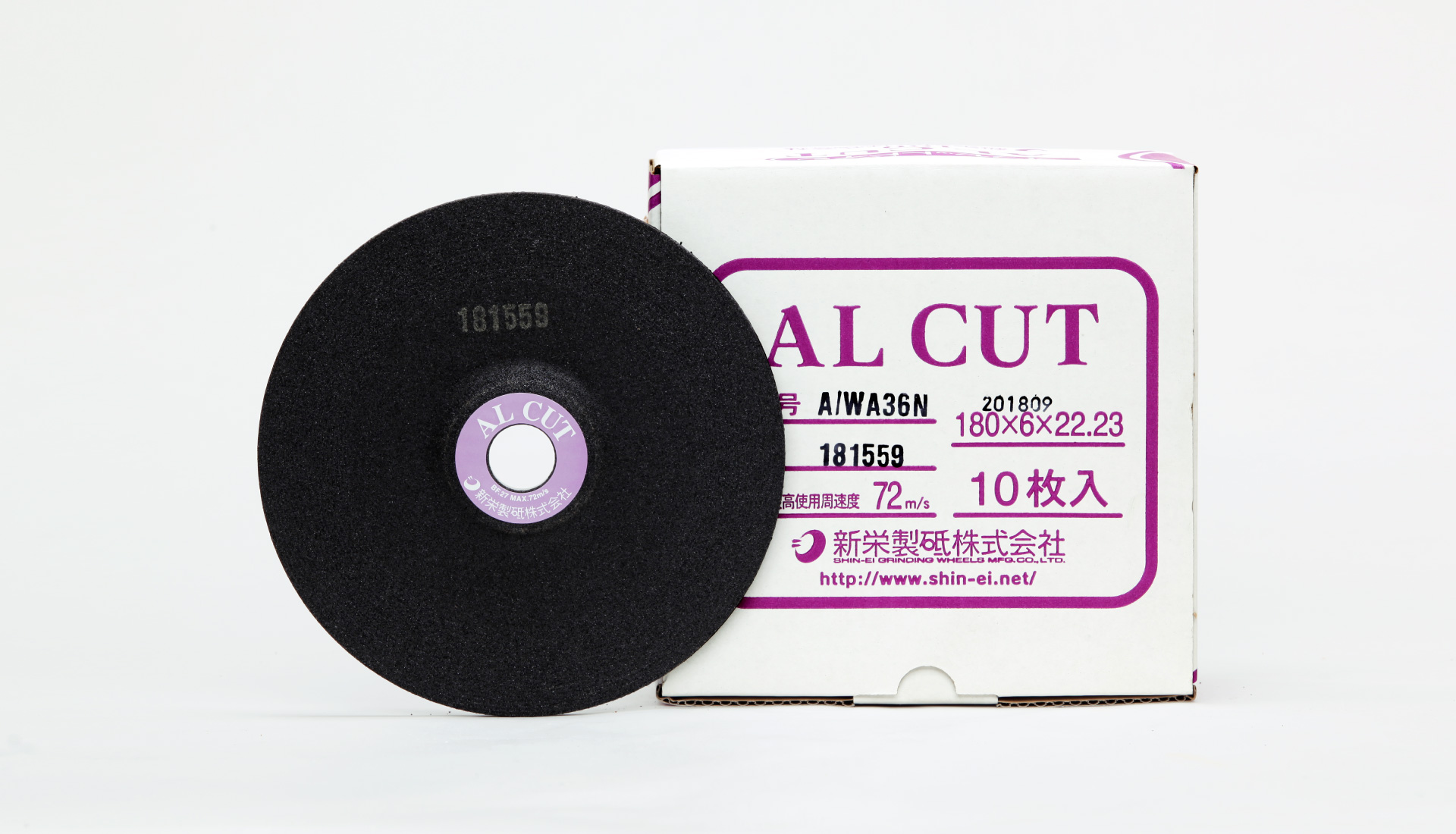

ALCUT

ALCUT

Application
For aluminum
Features
Through use of a special filler, this wheel eliminates the problem of wheel clogging while grinding aluminum materials ensuring a smoother work flow.

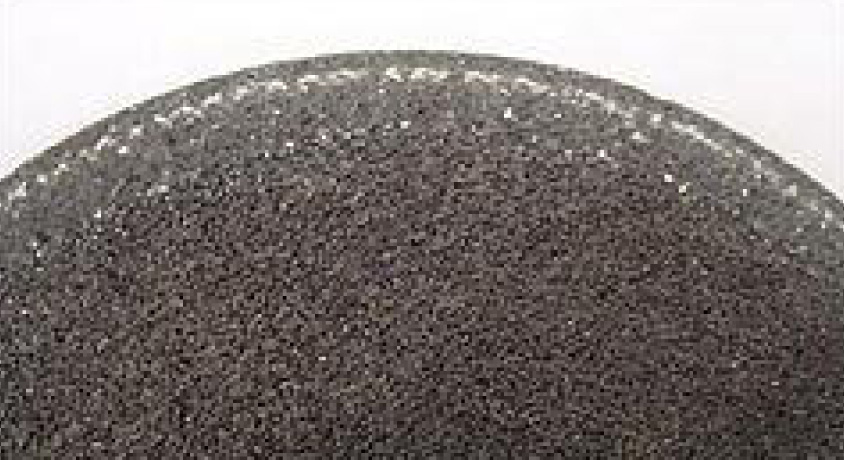

  • STANDARD GRINDING WHEEL

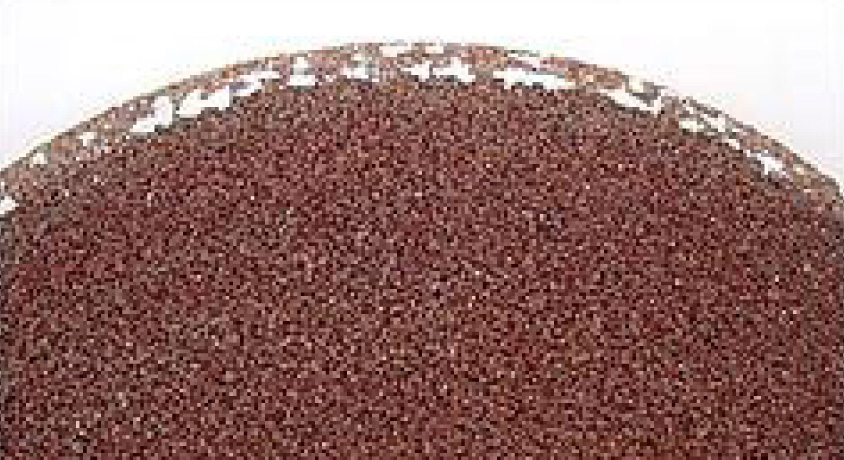

  • ALCUT GRINDING WHEEL

(Swip the screen left)

Dimensions
(Diameter×Thickness×Hole dia)		 Grain Grit Hardness Maximam
operation speed		 Pack Qty
(Inner pcs.)
100×6×15(16)mm
180×6×22mm 		A/WA 36 N (soft) 72m/sec 200pcs. (25pcs.)
50pcs. (10pcs.)
A 30 T (hard)
180×6×22.23mm 80m/sec 50pcs. (10pcs.)

Removal Seizing

Removal Seizing

Application
For removal seizure of sand
Features
Seizure of sand are usually removed by air vibration tool.
Through use of this grinding wheels, it can be work load reduction.

(Swip the screen left)

Dimensions
(Diameter×Thickness×Hole dia)		 Grain Grit Hardness Maximam
operation speed		 Pack Qty
(Inner pcs.)
100×6×15mm
125×6×22mm 		C 14 M 72m/sec 160pcs. (20pcs.)
80pcs. (20pcs.)
180×8×22.23mm 80m/sec 50pcs. (10pcs.)
