Products PG series for glass

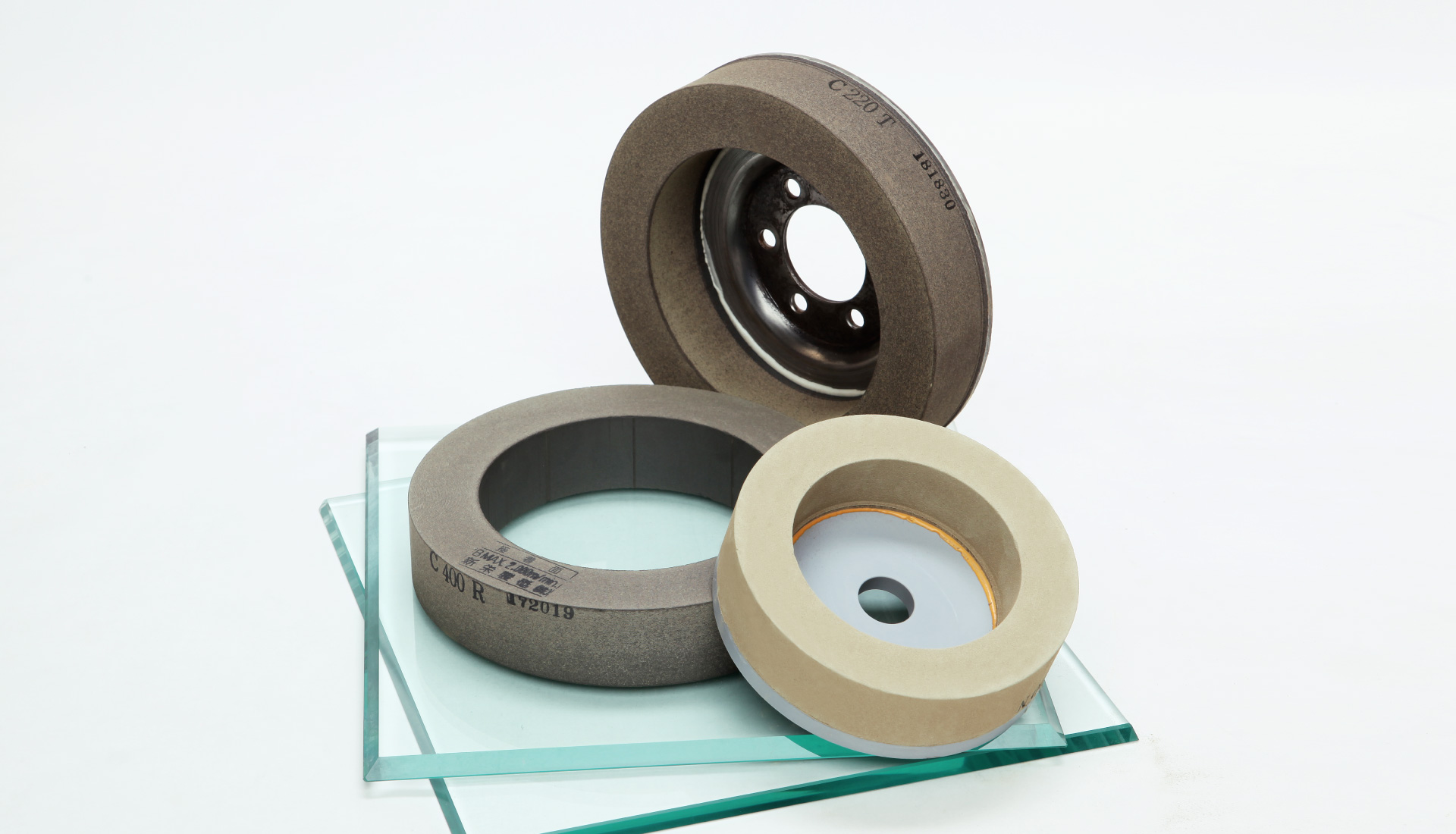

For rough polish
- Applications
- Polishing of plate glass edges(edg)
- Features
- Since abrasive materials are bonded with thermoplastic phenol resins, this wheel is superior in tenacity and safty, enabling its use at high speeds. In addition ,with a certain elasticity furnished, this wheel removed polished mark of the previous process and readies a finished surface for the next process.
-
(Swip the screen left)
Dimensions (Diameter×Thickness×Hole dia) Grain Grit Hardness 150×45×22（Type-6 Cup wheel）mm
205×40×125mm
205×40×140mmＣ 220 (coarse)
320
400
500
600
800 (fine)P－Glass thickness 10mm or more (soft)
R－Glass thickness less than 10mm
S－Glass thickness less than 5mm (hard)

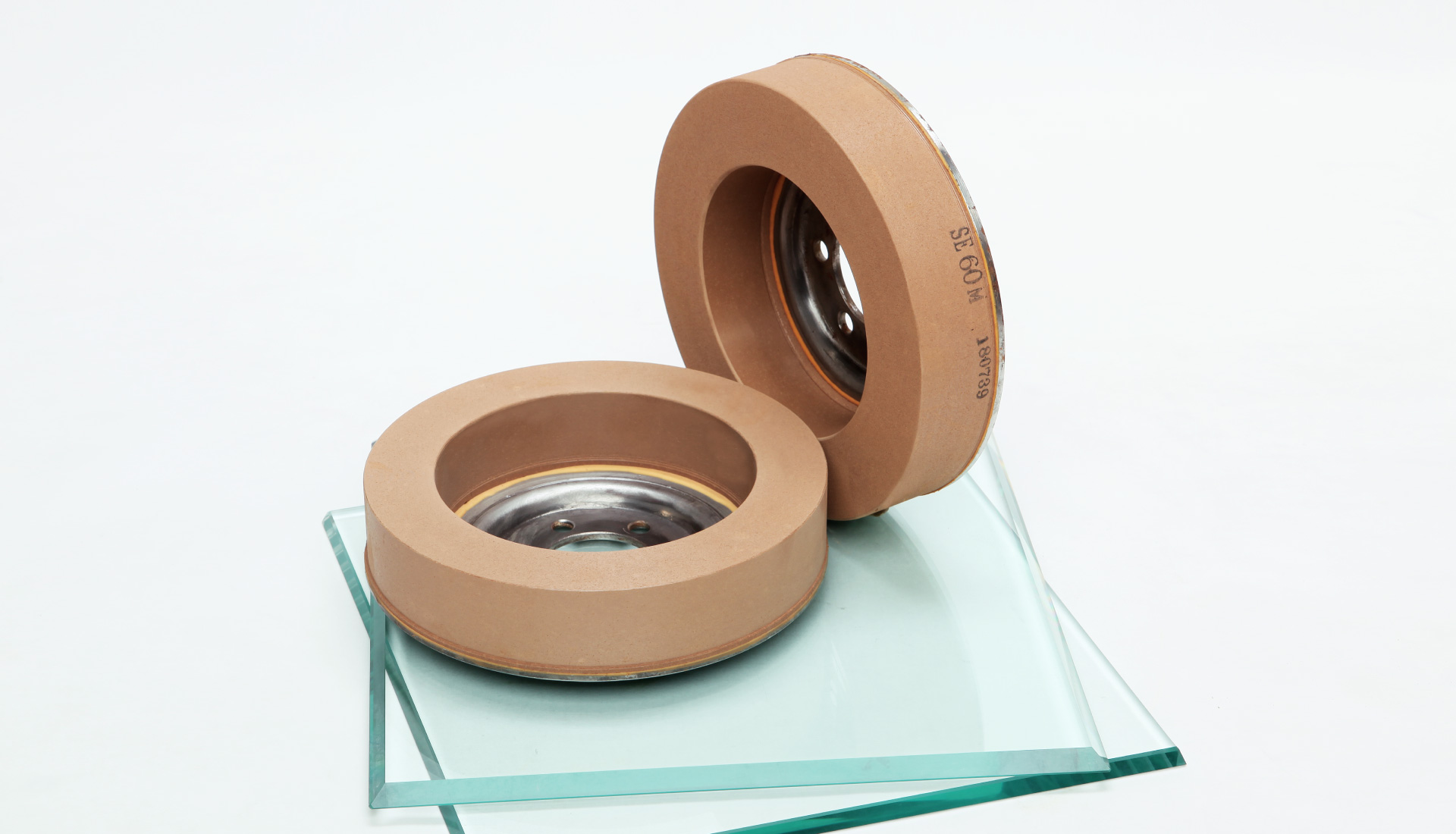

For finish polishing
- Applications
- For final polishing process of plate glass edges(edg) burnishing
- Features
- Since only abrasive materials of high-purity cerium oxide are cured with resins,this wheel provides a high abrasive grain ratio and better gloss than grinding wheels made using rubber bonds.
-
(Swip the screen left)
Dimensions (Diameter×Thickness×Hole dia) Grain Grit Hardness 150×45×22（Type-6 Cup wheel）mm
205×40×125mm
205×40×140mmSE 30 K－Glass thickness 10mm or more(soft) 60 M－Glass thickness less than 10mm(hard)
