Products P series for polishing industrial roll
In repairing and newly fabrication a roll(such as hydraulic roll, roll for iron making, roll for paper manufacturing, film roll,etc.. a process of vertically polishing steel, stainless steel or chrome materials is essential.
We can satisfy customer
requirements with one of the best products we manufacture, the high-speed roll grinding wheel.

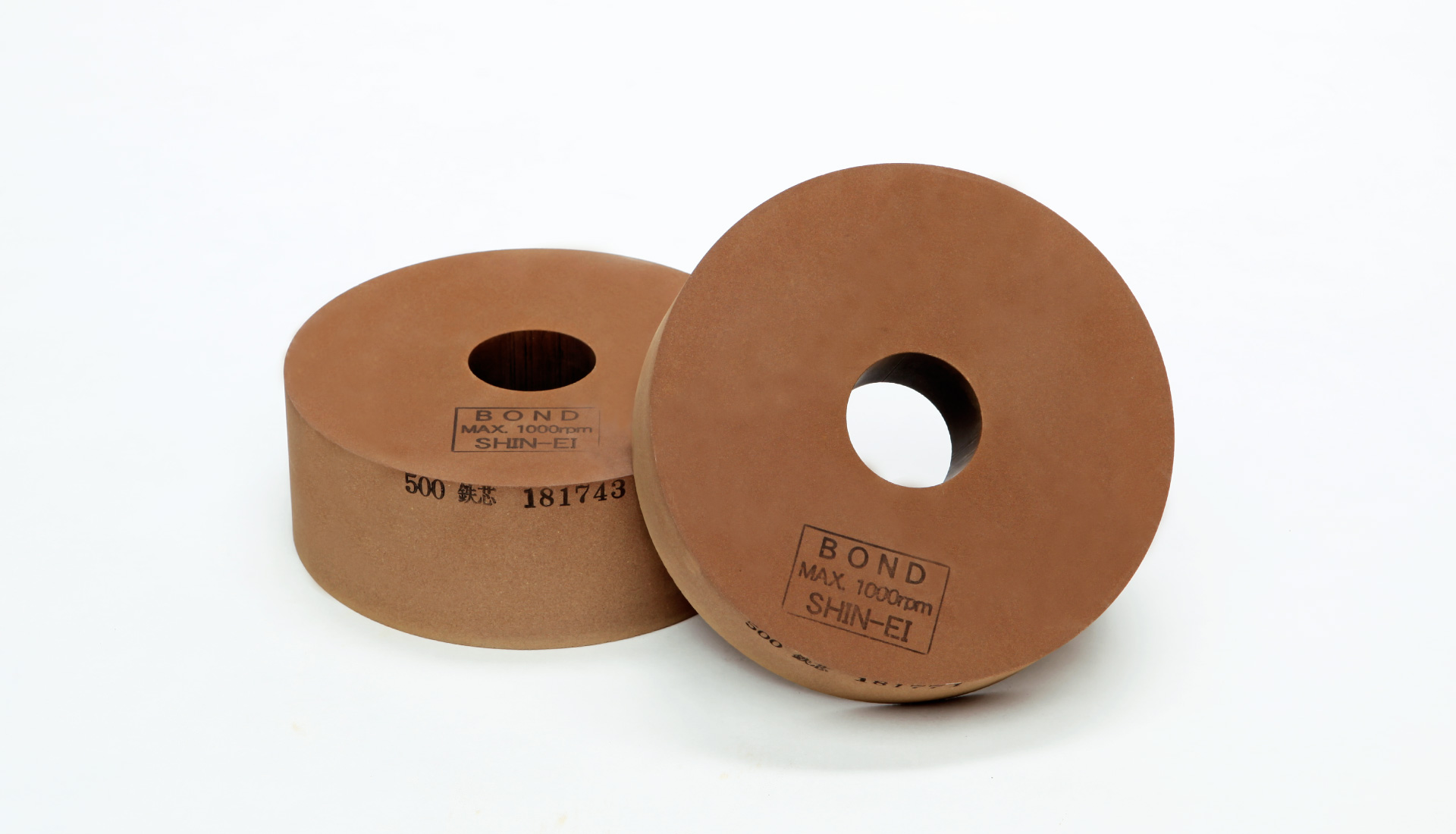

For steel roll
- Applications
- Remove mark of lathe tool , Polish before plating
-
(Swip the screen left)
Dimensions (Diameter×Thickness×Hole dia) Grain Grit Hardness 200×50×50mm
200×55×50mm
200×75×50mmA 80 (coarse)
〜
1,000 (fine)O (soft)
P
Q (hard)

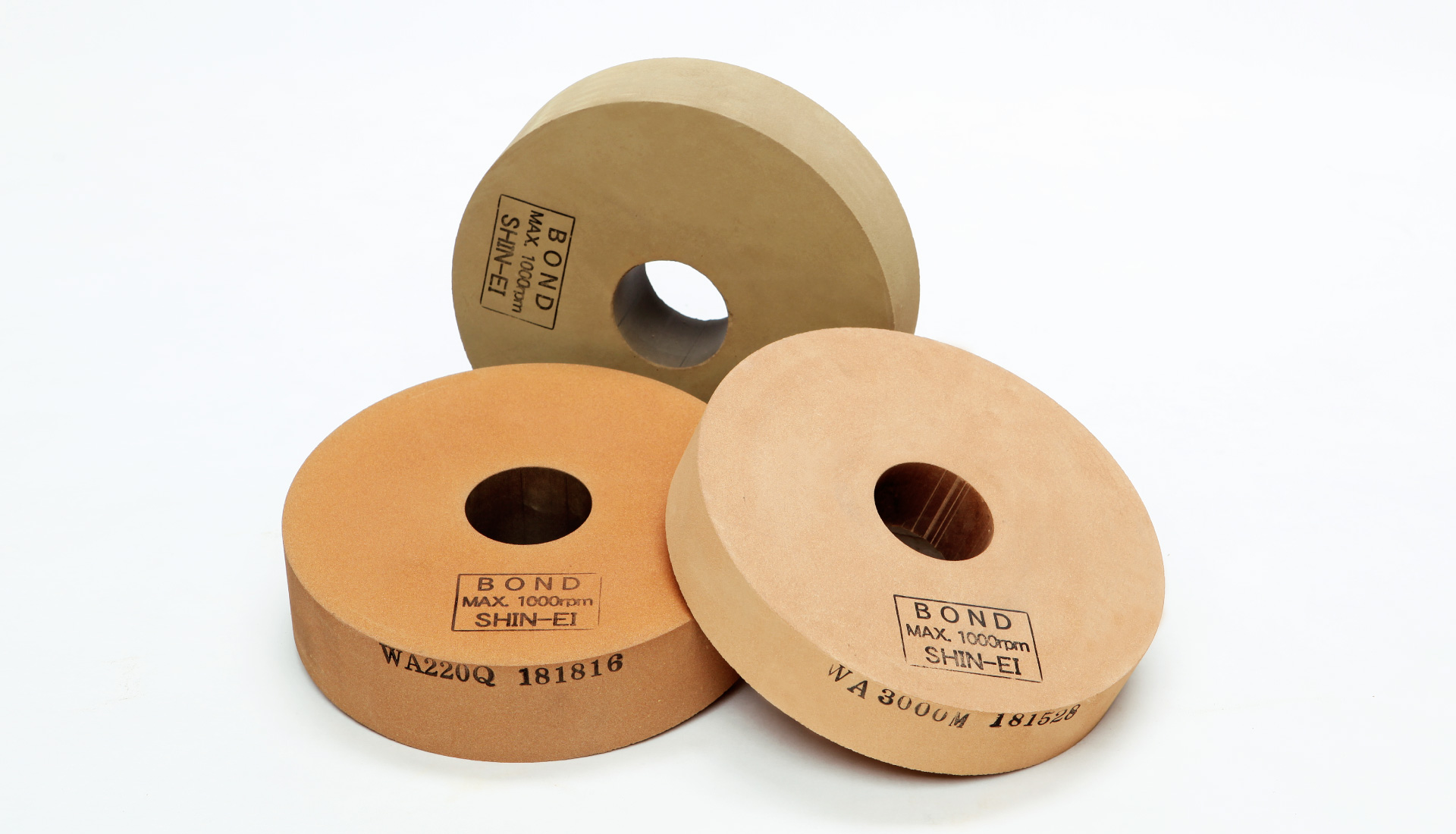

For stainless steel / chrome plating
- Applications
- Polishing stainless steel , nickel plationg , chrome plating
-
(Swip the screen left)
Dimensions (Diameter×Thickness×Hole dia) Grain Grit Hardness 200×50×50mm
200×55×50mm
200×75×50mmWＡ
GC120 (coarse)
〜
6,000 (fine)M (soft)
N
O
P (hard)

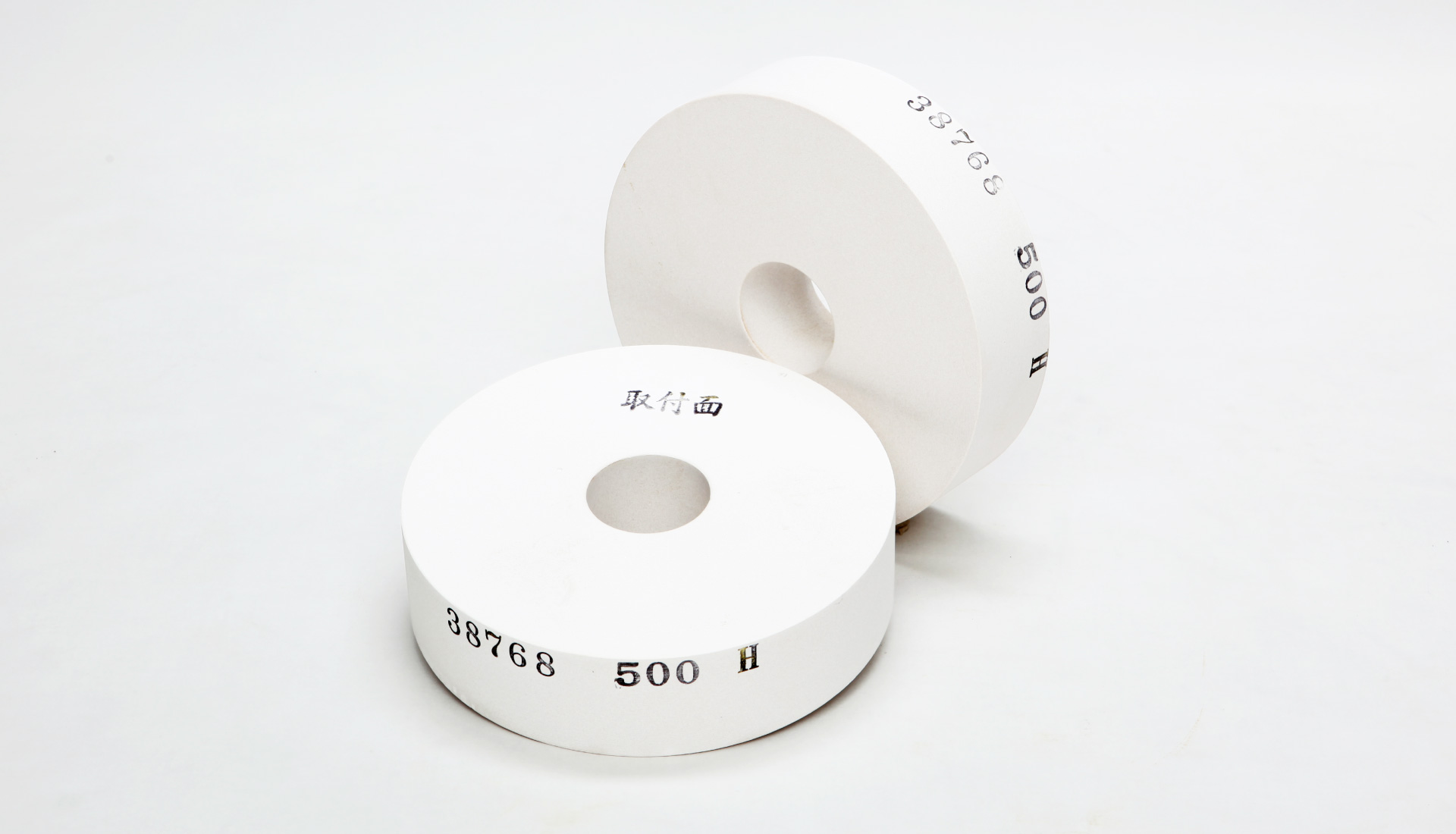

For Mirror surface finish chrome plating
- Applications
- Chrome plating mirror finish
-
(Swip the screen left)
Dimensions (Diameter×Thickness×Hole dia) Specification 200×35×50mm CR80SD

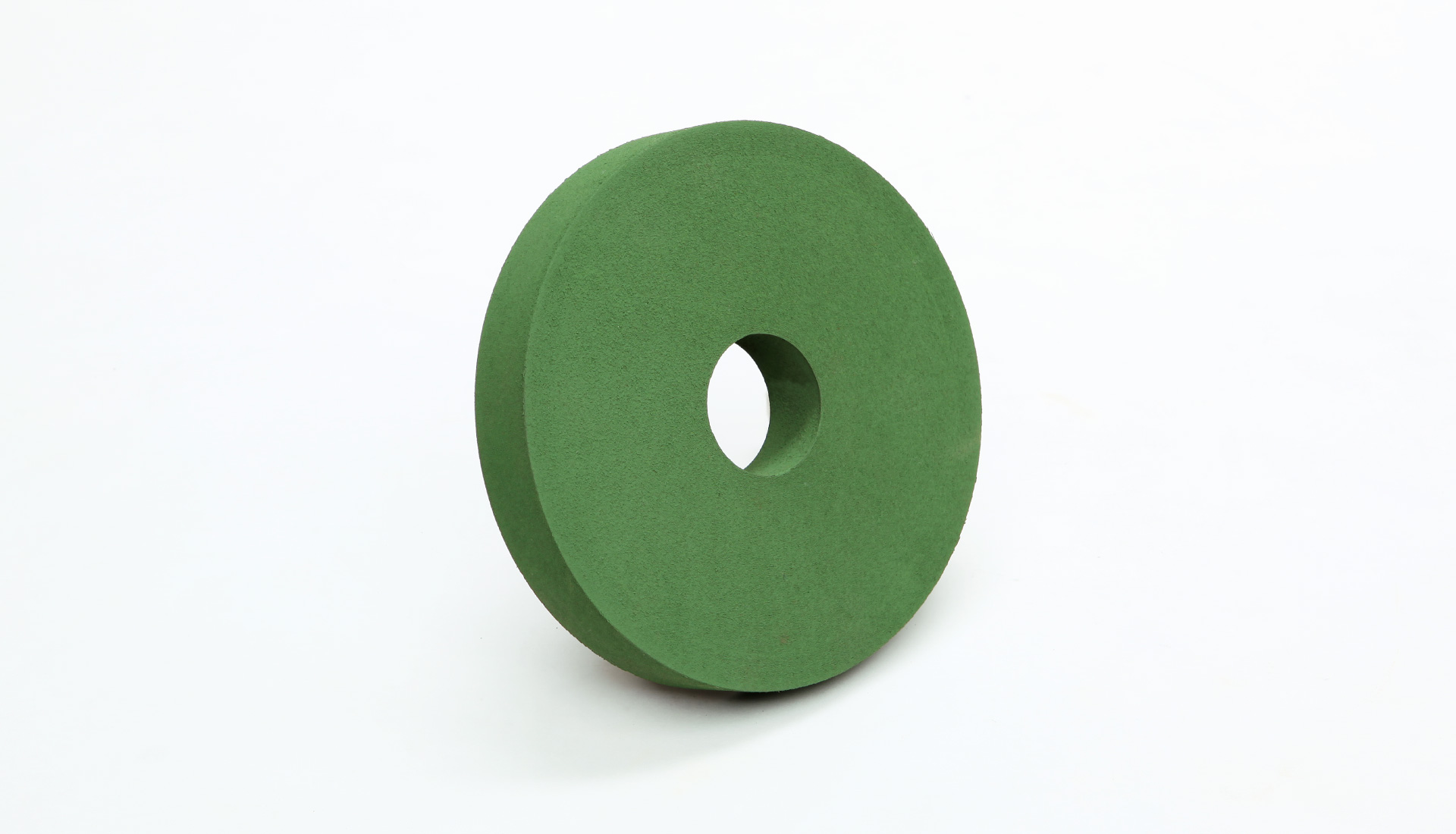

For chrome plating
- Applications
- Ajusting diamater of chrome plating High grinding ability
-
(Swip the screen left)
Dimensions (Diameter×Thickness×Hole dia) Grain Grit Hardness 200×50×50mm WA 120 (coarse)
〜
800 (fine)H
Polishing process
- video
- Polishing process and surface roughness
-
(Swip the screen left)
Before
PolishingProscess 1 Proscess 2 Proscess 3 Proscess 4 Proscess 5 Proscess 6 Chrome
plationgWA80～120
Cylindrical
grinding wheelA320
Resinoid
grinding
wheelA500
Resinoid
grinding
wheelA1000
Resinoid
grinding
wheelA2000
Resinoid
grinding
wheelFor Mirror
surface
finishing
chrome plating

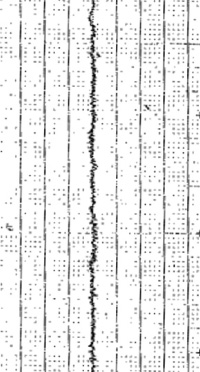

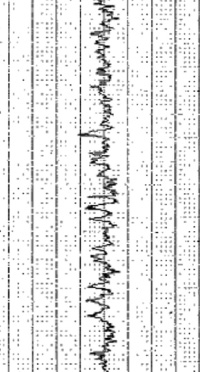

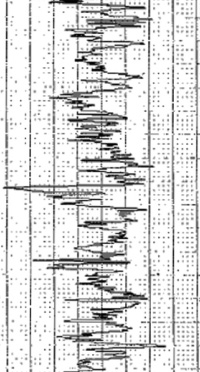

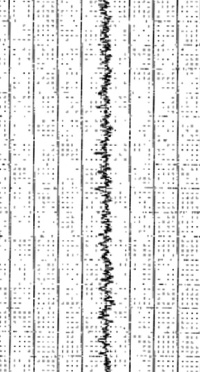

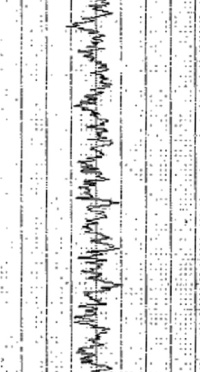

Ra(μm) 0.21 0.07 0.05 0.02 0.02 0.01 Ry(μm) 1.51 0.45 0.35 0.20 0.11 0.06 - This date depends on the processing condition of polishing machine
- Through use of #3000 #5000 before mirror surface finishing chrome plationg, the surface roughness of chrome plating more fine
