Products Grinding wheel for cutting

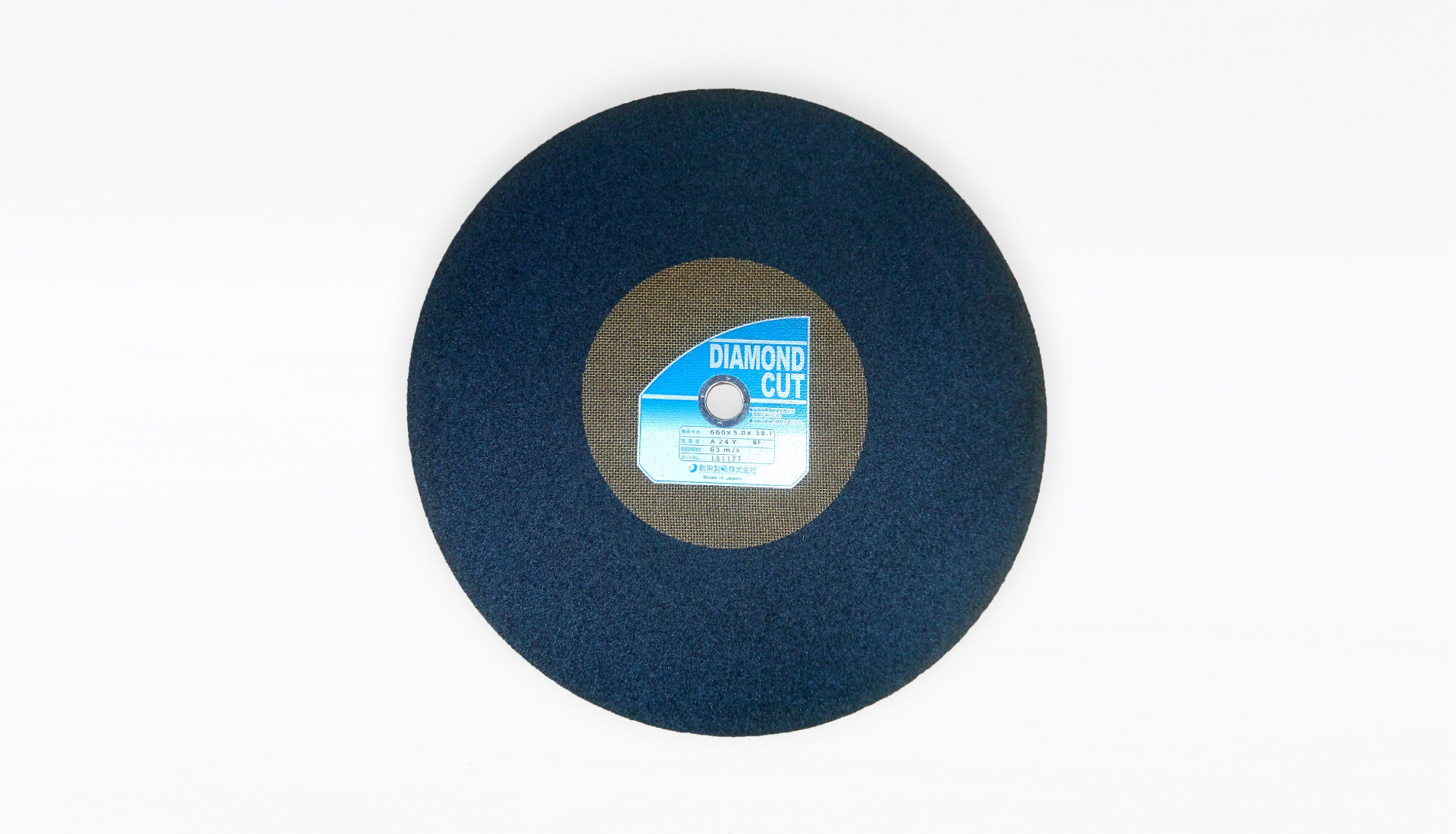

Diamond cut(Standard)
-
(Swip the screen left)
Dimensions
(Diameter×Thickness×Hole dia)Grain Grit Hardness Pack Qty
(Inner pcs.)100×2×15mm
125×2×22mm
150×2×22mm
180×2×22mm
205×2×22mm
305×3×25.40mm
355×3×25.40mm
405×3×25.40mm
455×3×25.40mmA
WA30 (coarse)
46 (fine)Q (soft)
R (hard)250pcs. (25pcs.)
250pcs. (25pcs.)
200pcs. (20pcs.)
200pcs. (20pcs.)
200pcs. (20pcs.)
25pcs.
25pcs.
25pcs.
20pcs.

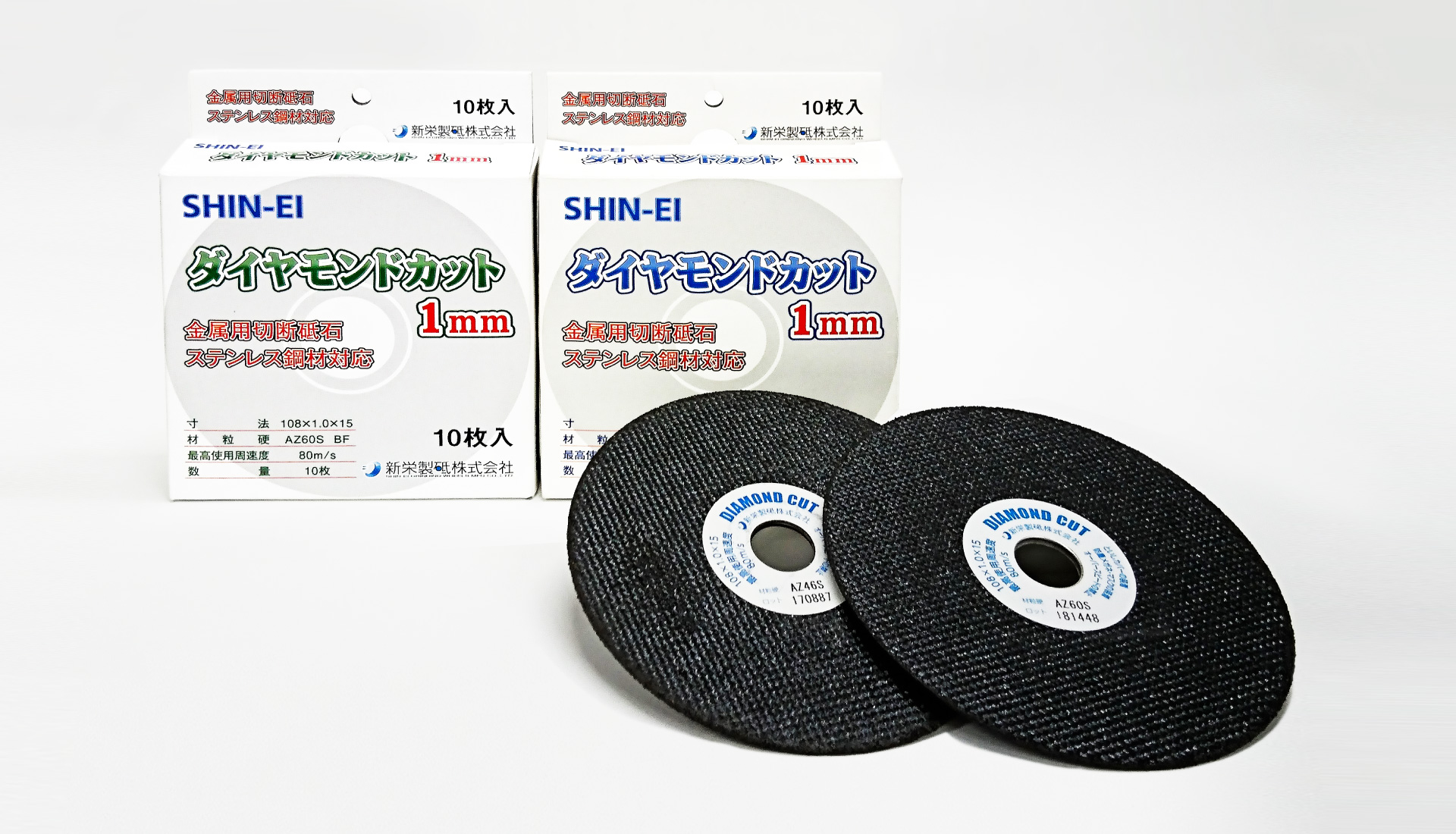

Dimond cut 108 1.0mm
- Features
- The 108 diamatar wheel combined AZ(aluminam zirconia)material can cut steel and stainless steel faster with high peripheral speed.
-
(Swip the screen left)
Dimensions
(Diameter×Thickness×Hole dia)Grain Grit Hardness Pack Qty
(Inner pcs.)108×1.0×15mm AZ 46（Metal round bar・Tick walled pipe）
60 （Seet steel・Thin pipe）S 200pcs. (10pcs.)

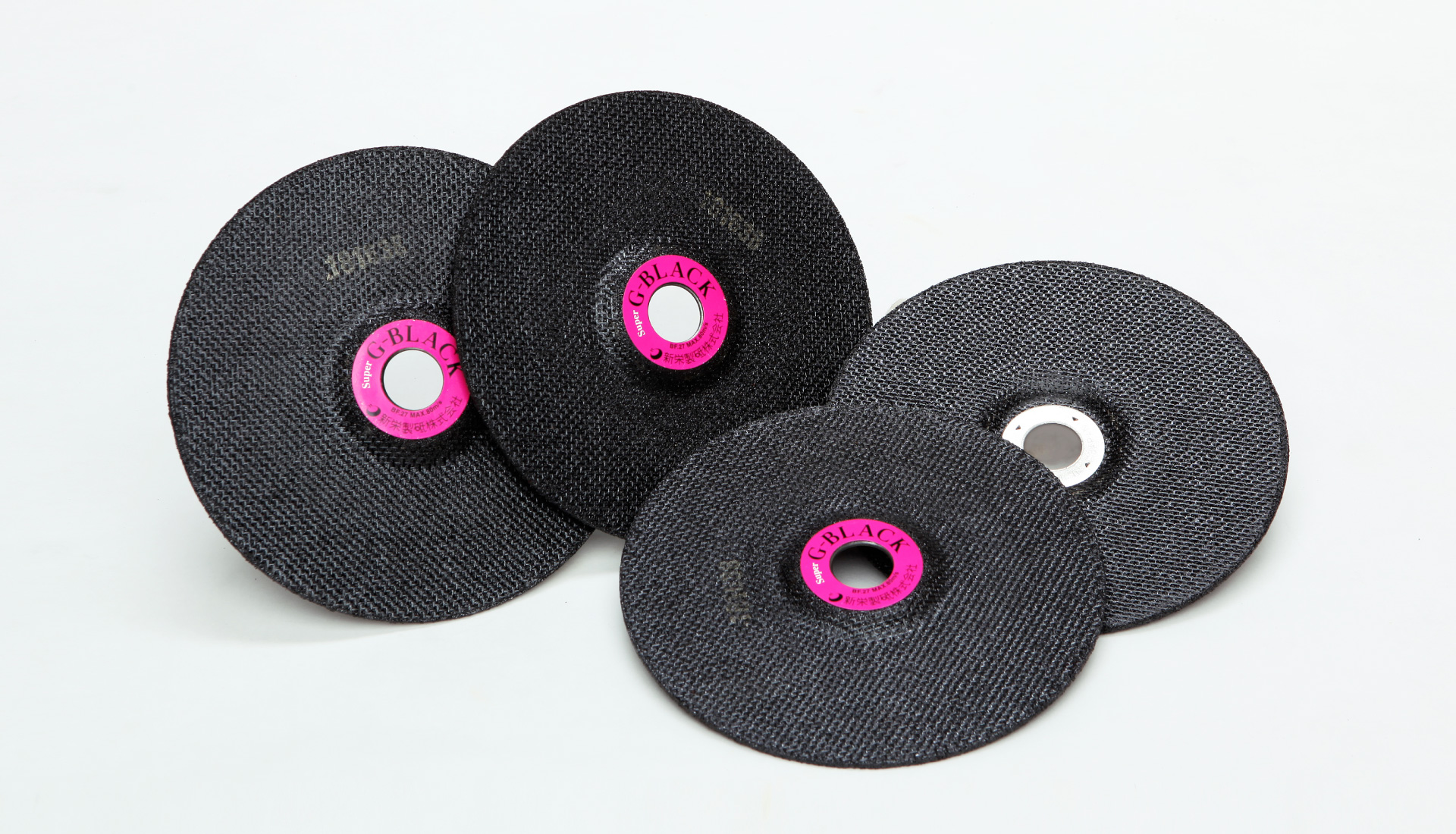

Depressed center cutting wheel
- Features
- The depressed center cutting wheel can cut workpiece from the base closer through recessing the flange within the wheel.
-
(Swip the screen left)
Dimensions
(Diameter×Thickness×Hole dia)Grain Grit Hardness Pack Qty
(Inner pcs.)180×2×22mm AZ
SA36 S
T100pcs. (50pcs.) -

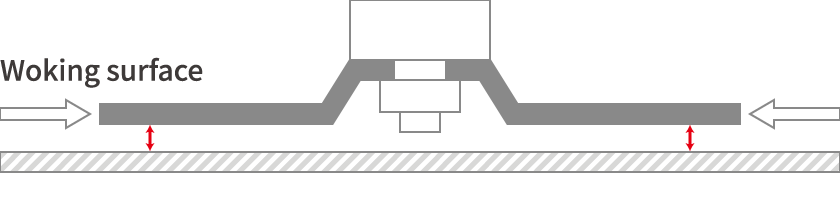

- Depressed center type

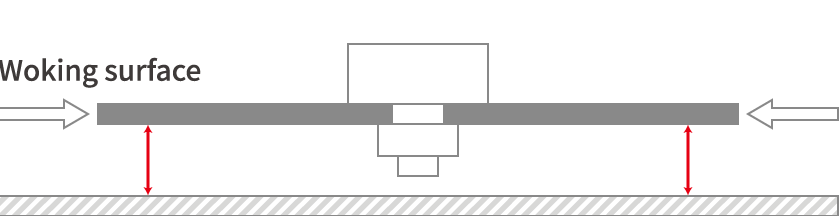

- Straight type
Compare with straight cutting wheels,this cutting wheels can cut workpiece from the bass closer.
- Depressed center type
Diamond cut (special order)
- Special order
-
We can manufacture special order cutting wheels as you would like as follows
- SIZE：100Φ～860Φ
- Grain：A / WA / C / AZ
